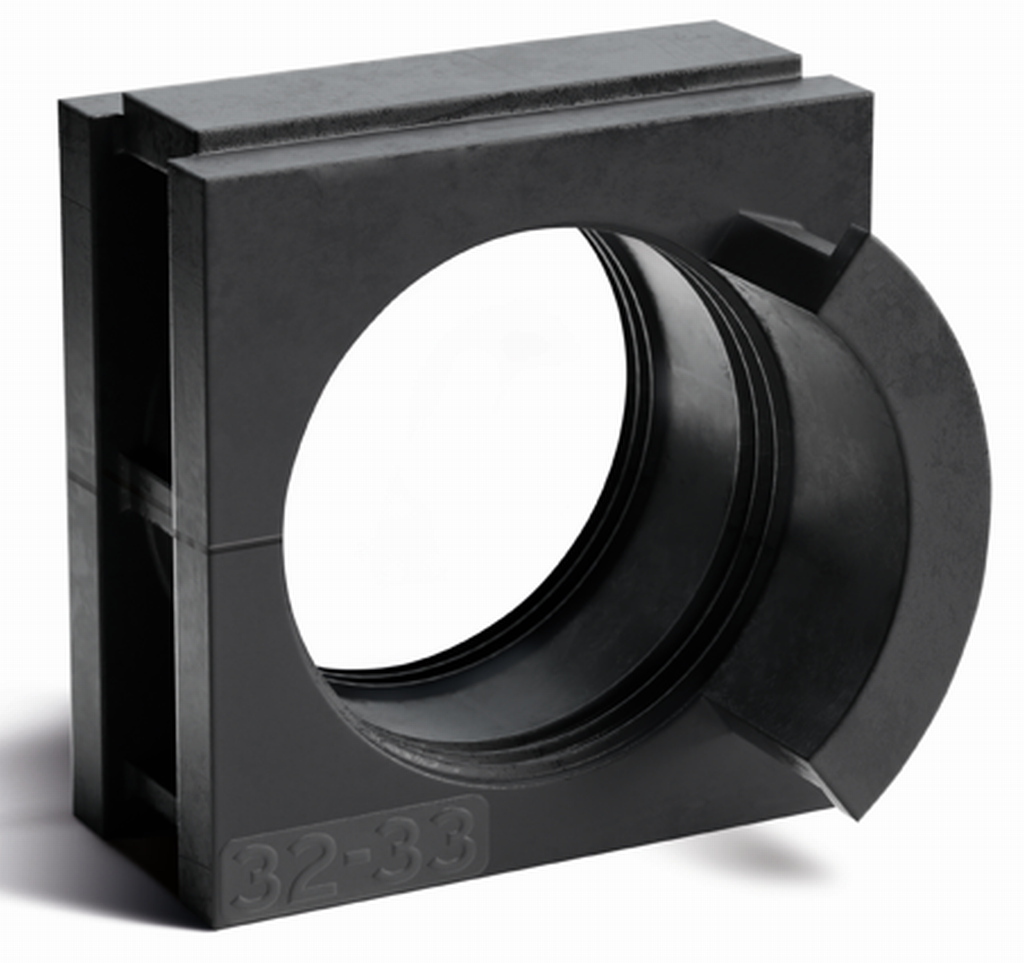

Pflitsch CABseal grommets big 16-33 mm
The large grommets made of TPE are suitable for cables from 16-33 mm. The strain relief can be positioned inside or outside. The large grommets require four grommet fields.
Characteristics
Ingress protection:
IP66
material:
TPE
color:
RAL 9005 schwarz
dimension:
42x42mm
diverse certificates:
UL Listed
Approvals:
RoHS
fire behaviour:
UL94-V0
temperature range:
-40°C - +100°C
brand:
Pflitsch
Varianten/Grössen
Item
Description
cable range
dimension
Ingress protection
101.337.017
Pflitsch CABseal grommets big
17.0 - 16.0 mm
42x42mm
IP66
101.337.018
Pflitsch CABseal grommets big
18.0 - 17.0 mm
42x42mm
IP66
101.337.019
Pflitsch CABseal grommets big
19.0 - 18.0 mm
42x42mm
IP66
101.337.020
Pflitsch CABseal grommets big
20.0 - 19.0 mm
42x42mm
IP66
101.337.021
Pflitsch CABseal grommets big
21.0 - 20.0 mm
42x42mm
IP66
101.337.022
Pflitsch CABseal grommets big
22.0 - 21.0 mm
42x42mm
IP66
101.337.023
Pflitsch CABseal grommets big
23.0 - 22.0 mm
42x42mm
IP66
101.337.024
Pflitsch CABseal grommets big
24.0 - 23.0 mm
42x42mm
IP66
101.337.025
Pflitsch CABseal grommets big
25.0 - 24.0 mm
42x42mm
IP66
101.337.026
Pflitsch CABseal grommets big
26.0 - 25.0 mm
42x42mm
IP66
101.337.027
Pflitsch CABseal grommets big
27.0 - 26.0 mm
42x42mm
IP66
101.337.028
Pflitsch CABseal grommets big
28.0 - 27.0 mm
42x42mm
IP66
101.337.029
Pflitsch CABseal grommets big
29.0 - 28.0 mm
42x42mm
IP66
101.337.030
Pflitsch CABseal grommets big
30.0 - 29.0 mm
42x42mm
IP66
101.337.031
Pflitsch CABseal grommets big
31.0 - 30.0 mm
42x42mm
IP66
101.337.032
Pflitsch CABseal grommets big
32.0 - 31.0 mm
42x42mm
IP66
101.337.033
Pflitsch CABseal grommets big
33.0 - 32.0 mm
42x42mm
IP66
