AG101.420.WEBB - Pflitsch Cable gland blueglobe CLEAN plus V4a

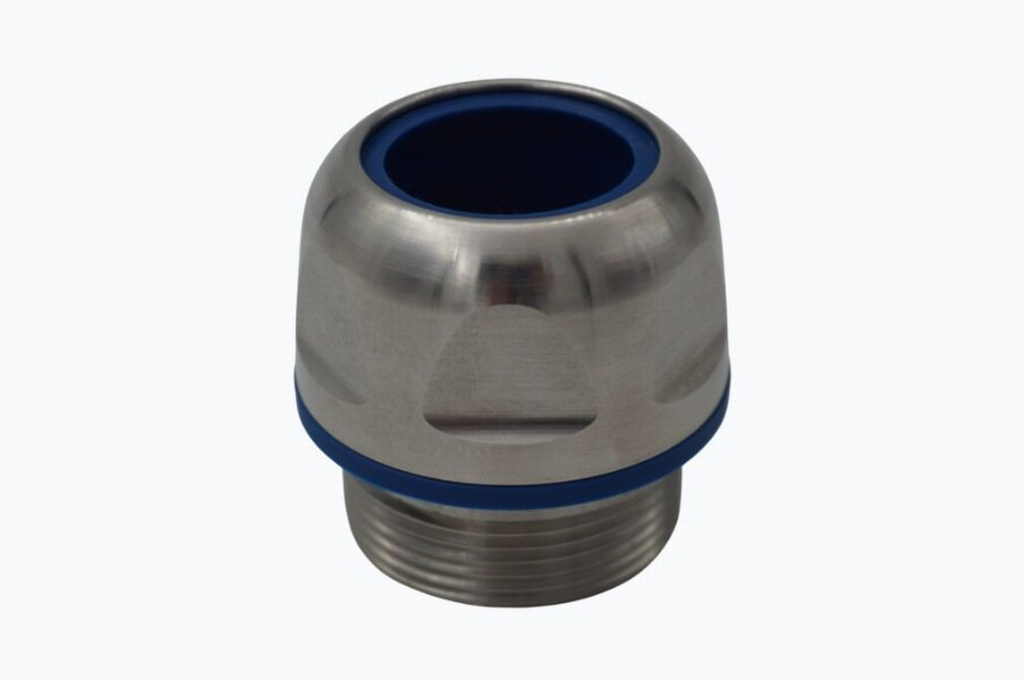

Pflitsch Cable gland blueglobe CLEAN plus V4a
Developed for the highest requirements of hygiene in the food industry. Smoothed and optimised surfaces inherently prevent the adherence of microorganisms and the build-up of bacteria. Certificate EHEDG 11/2013.
Characteristics
Ingress Protection:
IP66/IP68/IP69
Material:
stainless steel 1.4404
material insert:
TPU
Material sealing washer:
TPU
certificate diverse:
EHEDG
Approvals:
RoHS
Temperature range:
-40°C - +85°C
Brand:
Pflitsch
Varianten/Grössen
Item
Description
thread
cable range
Wrench size
101.420.080
Kabelverschraubung blueglobe CLEAN Plus V4A
M8x1.0
4.5-4.0 mm
7/11x11.9 mm
101.420.100
Kabelverschraubung blueglobe CLEAN Plus V4A
M10x1.0
7.0-5.0 mm
10/15x16.5 mm
101.420.120
Cable gland blueglobe CLEAN plus
M12x1.5
5.0-3.5 mm
10/17x19.4 mm
101.420.121
Cable gland blueglobe CLEAN plus
M12x1.5
7.0-5.0 mm
10/17x19.4 mm
101.420.161
Cable gland blueglobe CLEAN plus
M16x1.5
9.0-7.0 mm
14/20x23.4 mm
101.420.201
Cable gland blueglobe CLEAN plus
M20x1.5
12.0-9.0 mm
19/24x27.4 mm
101.420.251
Cable gland blueglobe CLEAN Plus
M25x1.5
15.0-12.0 mm
24/30x33.4 mm
101.420.252
Cable gland blueglobe CLEAN Plus
M25x1.5
18.0-15.0 mm
24/30x33.4 mm
101.420.321
Cable gland blueglobe CLEAN Plus
M32x1.5
21.0-18.0 mm
30/36x39.4 mm
101.420.322
Cable gland blueglobe CLEAN Plus
M32x1.5
23.0-20.0 mm
30/36x39.4 mm
101.420.401
Cable gland blueglobe CLEAN Plus
M40x1.5
26.0-23.0 mm
36/45x48.4 mm
101.420.402
Cable gland blueglobe CLEAN Plus
M40x1.5
29.0-26.0 mm
36/45x48.4 mm
