NEW

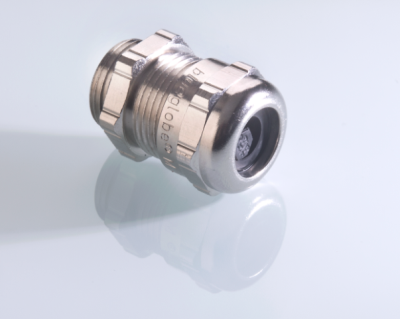

Cable Gland Pflitsch blueglobe TRI EMC EN45545

The new EMC solution blueglobe TRI® with the triangle contact spring provides even more and combines excellent attenuation values and ease of assembly.
Characteristics
  • EN: Schutzart (IP Wert): IP68 / IP69
  • EN: Werkstoff: Nickel plated brass
  • EN: Werkstoff Dichteinsatz: T80s
  • EN: Werkstoff Dichtung Anschlussg.: HNBR
  • EN: Marke: Pflitsch
Varianten/Grössen
Item Description EN: GewindeEN: DichtbereichEN: Schlüsselweite
104.340.130 Cable gland blueglobe TRI EMC EN 45545 M12x1.58.0 - 5.0 mm17x18.9 mm
104.340.170 Cable gland blueglobe TRI EMC EN 45545 M16x1.511.0 - 7.0 mm20x22.2 mm
104.340.211 Cable gland blueglobe TRI EMC EN 45545 M20x1.514.0 - 9.0 mm24x26.5 mm
104.340.260 Cable gland blueglobe TRI EMC EN 45545 M25x1.520.0 - 11.0 mm30x33 mm
104.340.330 Cable gland blueglobe TRI EMC EN45545 M32x1.525.0 - 15.0 mm36x39.5 mm
104.340.410 Cable gland blueglobe TRI EMC EN 45545 M40x1.532.0 - 20.0 mm45x48 mm
104.340.510 Cable gland blueglobe TRI EMC EN 45545 M50x1.542.0 - 31.0 mm57x61 mm
104.340.640 Cable gland bvlueglobe TRI ATEX EN 45545 M63x1.554.0 - 41.0 mm68x72 mm
