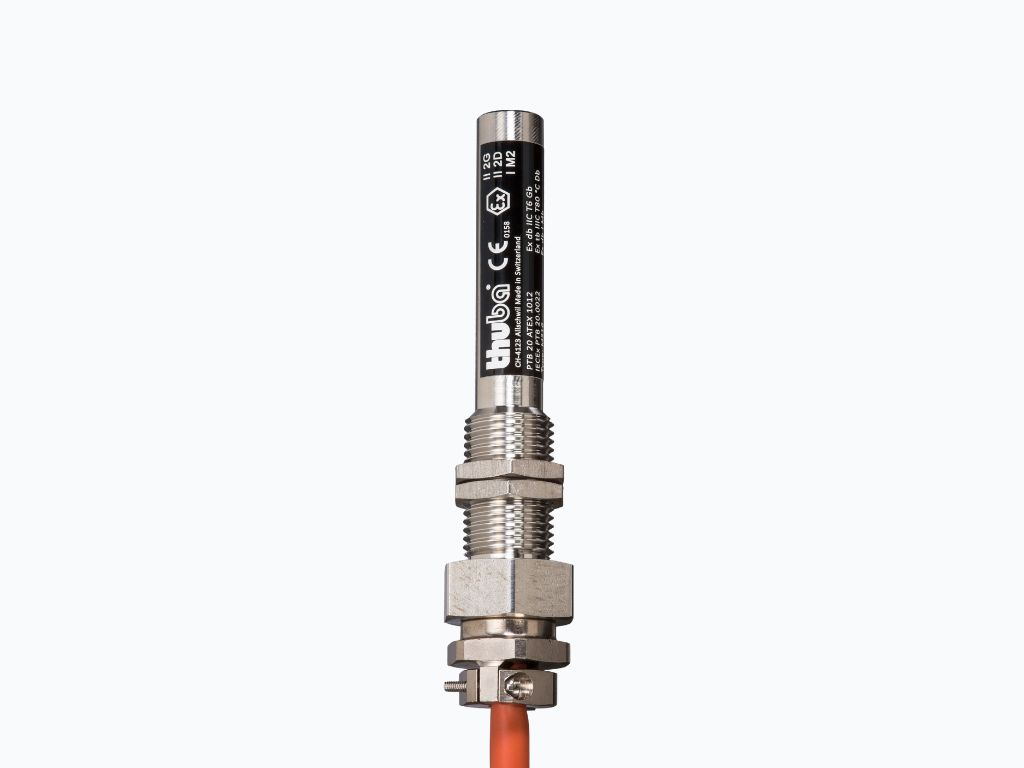

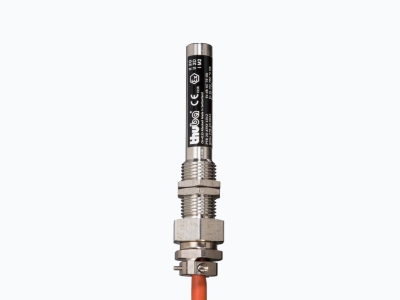

Command signaling device magnetic switch

In addition to explosive gas and dust atmospheres, the magnetic switches are also certified for use in mines (areas susceptible to firedamp). They consist of a flameproof stainless steel enclosure with a built-in and potted reed contact (hermeticallysealed in a glass tube).
Characteristics
  • thread: M22 · 1
  • Material: stainless steel 1.4305
  • Cable length: 5 meters
  • certificate ATEX: BVS 20 ATEX E 091 X
  • certificate IECEx: IECEx BVS 20.0073X
  • LED data: 24 V DC, 1.5 A, DC-21 / 250 V AC, 1,5 A, AC-21
  • Brand: thuba AG
Varianten/Grössen
Item Description threadCable length
800.307.001 magnetic switch MS 16 M22 · 15 meters
800.307.002 magnetic switch MS 16 M22 · 15 meters
800.307.100 Ring magnet for magnetic switch MS 16 M22 · 15 meters
800.307.101 Ring magnet for magnetic switch MS 16 M22 · 15 meters
800.307.102 Ring magnet for magnetic switch MS 16 M22 · 15 meters
