AG112.301.WEBA - Wiska Reducer hexagonal

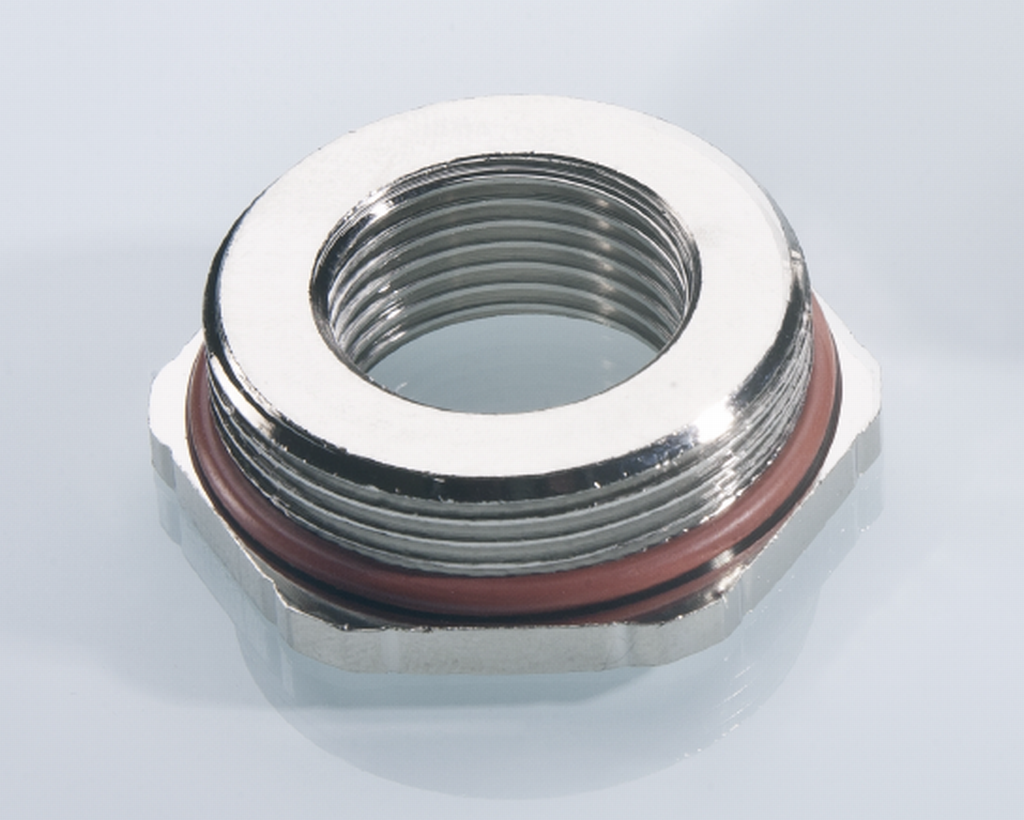

Pflitsch Reducer hexagonal with O-ring brass
Reducers hexagonal in nickel plated brass with sealing washer in HNBR for the mounting of cable glands.
Characteristics
Ingress Protection:
IP 68
Material:
Nickel plated brass
Material sealing washer:
HNBR
Certificate diverse:
RoHS
Approvals:
RoHS
Temperature range:
-40°c - +150°c
Brand:
Pflitsch
Varianten/Grössen
Item
Description
Thread
Wrench Size
Colour
112.403.160
Reducer hexagonal with O-ring
M 16x1.5 - M 12x1.5
18x20.2 mm
112.403.200
Reducer hexagonal with O-ring
M 20x1.5 - M 16x1.5
22x24.2 mm
112.403.201
Reducer hexagonal with o-ring
M 20x1.5 - M 12x1.5
22x24.2 mm
112.403.250
Reducer hexagonal with O-ring
M 25x1.5 - M 20x1.5
28x31.2 mm
112.403.251
Reducer hexagonal with O-ring
M 25x1.5 - M 16x1.5
28x31.2 mm
112.403.252
Reducer hexagonal with O-ring
M 25x1.5 - M 12x1.5
28x31.2 mm
112.403.320
Reducer hexagonal with O-ring
M 32x1.5 - M 25x1.5
35x38.5 mm
112.403.321
Reducer hexagonal with O-ring
M 32x1.5 - M 20x1.5
35x38.5 mm
112.403.322
Reducer hexagonal with O-ring
M 32x1.5 - M 16x1.5
35x38.5 mm
112.403.323
Reducer hexagonal with O-ring
M32X1.5-M25X1.5 long
35x38.5 mm
112.403.400
Reducer hexagonal with O-ring
M 40x1.5 - M 32x1.5
43x47.5 mm
112.403.401
Reducer hexagonal with o-ring
M 40x1.5 - M 25x1.5
43x47.5 mm
112.403.500
Reducer hexagonal with O-ring
M 50x1.5 - M 40x1.5
54x58 mm
112.403.501
Reducer hexagonal with O-ring
M 50x1.5 - M 32x1.5
54x58 mm
112.403.502
Reducer hexagonal with O-Ring
M 50x1.5 - M 25x1.5
54x58 mm
112.403.630
Reducer hexagonal with O-ring
M 63x1.5 - M 40x1.5
68x74 mm
112.403.631
Reducer hexagonal with O-ring
M 63x1.5 - M 50x1.5
68x74 mm
